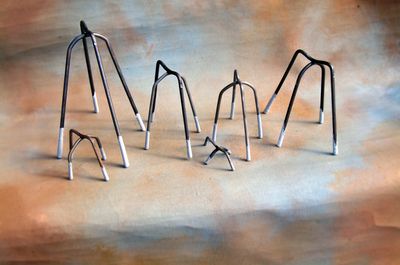

Wire Reinforcing Bar Chairs
Additional Information
Steel Wire Chairs are manufactured from hard drawn wire
Wire Chairs / Spacers are used to provide support for reinforcing mesh and bar when laying concrete slabs
Wire Gauge Size / Height in mm
3.97mm - 4.95mm wire / 20mm - 40mm
4.95mm wire / 50mm - 100mm
5.55mm wire / 110mm - 160mm
6.23mm wire / 170mm - 400mm

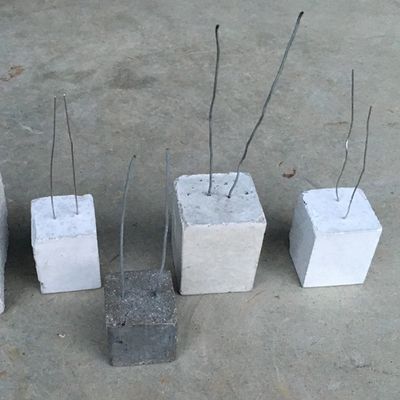

Concrete Block Spacers/Aspros
Additional Information
Concrete Block Spacers or Aspros are a highly engineered marine grade concrete spacer with high load capacities and corrosion resistance. Stainless steel wire is used as opposed to galvanised to attach to the rebar.
Main applications are for high loads, road infrastucture, dams, bridges etc
Sizes / Height in mm
32mm ( 105 per Box ), 40mm ( 75 per Box ), 45mm ( 75 per Box )
50mm ( 75 per Box ), 55mm ( 50 per Box ), 60mm ( 25 per Box )
65mm ( 25 per Box ), 70mm ( 25 per Box ), 75mm ( 25 per Box )
80mm ( 25 per Box ), 90mm ( 25 per Box ), 100mm ( 25 per Box )
Plastic Reinforcing Bar Chairs
Additional Information
Plastic Bar Chairs (Slab on Ground Chairs) are quick and easy to use while being sturdy and durable, providing an alternative to Wire Spacers. Plastic Slab on Ground Chairs support a range of mesh with the clip-on spacers having an easy clip-on system.
Sizes / Height in mm
25/40, 50/65, 50/65C, 75, /90, 85/100, 105/110,
115/120, 125/130, 135/140, 145/150
Plastic Clipfasts
Additional Information
Plastic Clipfasts Spacers or Fastclips) are quick, light and easy to use. They provide support for reinforcing mesh or deformed bar steel on formwork. Clipfasts range in height from 15mm to 75mm and can be applied on reinforcing bars up to 20mm thick.
Sizes / Height in mm
20, 25, 32, 40, 50, 65 & 75
Plastic Top and Bottom Deck Spacers
Additional Information
Plastic Deck Spacers are used for suspended slabs or slabs on ground.
Bottom deck spacers are designed to support both mesh and large bars in suspended decks, precast beams and panels, and tilt-up applications.
Top deck spacers are designed to support both top mesh and top reinforcing bars in suspended decks &
Slab on Ground
Sizes / Height in mm
65/75, 90/100, 110/120, 130 /140,
150/160, 170/180, 190/200
Plastic Circular Spacers
Additional Information
Circular Spacers , Wagon Wheels, Fastwheel Spacers provides 360 degree coverage where reinforcing mesh or bar is placed in a vertical position as in walls, columns & Piers
Circulars Spacers clips up to24mm Diameter bar. circulars are available from 15mm up to 75mm in diameter.
Sizes / Cover in mm / Bar
15/12 / 15mm Cover / 8-12mm, 20/12 / 20mm Cover / 8-12mm, 25/12 / 25mm Cover / 8-12mm
30/12 / 30mm Cover / 8-12mm, 40/12 / 40mm Cover / 8-12mm, 50/12 / 50mm Cover / 8-12mm
60/12 / 60mm Cover / 8-12mm, 75/12 / 75mm Cover / 8-12mm, 25/20 / 25mm Cover / 16-20mm
30/20 / 30mm Cover / 16-20mm, 40/20 / 40mm Cover / 16-20mm, 50/20 / 50mm Cover / 16-20mm
75/20/ 75 cover / 16-20mm
Black Tie Annealed Wire
Additional Information
Black Annealed Tie Wire (BTW) is used by steel fixers for tying reo-bar (reinforcement bar) and mesh These handy coils are used in conjunction with a tie wire belt pack and provide a lightweight and convenient means to handle all your steel tying needs on site
Sizes
1.42 kilos per roll, 1.57mm thick
( sold in 10 per box )
Base Plates
Additional Information
Base Plates are round metal plates used to provide support as a base for wire chairs , concrete bar chairs & Deck chairs on loose soils , preventing the bar chair or support from ‘sinking’ into the ground.
Polythene Builders Film
Additional Information
Polythene builders film provides a barrier against vapour rising through the air of the soil and otherwise condensing in the slab or being trapped under impermeable floor coverings.
Slab onground construction requires that a branded concrete underlay or vapour barrier is used to prevent moisture vapour or groundwater penetration into the concrete slab.
Vespol’s polythene builders film is recognised for its quality and compliance with both Australian standards (AS2870 and AS2904) and the Builders Code of Australia.
Vespol’s builders film is available in Medium and High Impact and in black, orange or clear in colour.
Other uses for the product include asbestos removal, pallet wrapping, carpet protection and silage protection.
Sizes
Black, 4m x 200um x 50m Roll
Orange, 4m x 200um x 50m roll
Duct Tape
Additional Information
Duct tape is made from high quality PVC backing, providing excellent stretch, conformability and durability. It’s strong adhesive ensures quick and reliable joining. Ideal for joining builders film, sealing and ducting (60 in a box)
Sizes / Height in mm
Grey , 48mm x 30m x 0.13mm
Black , 48mm x 30m x 0.13mm
Safety Caps
Additional Information
Connolly Safety Cushion Caps are designed to reduce the risk of injury on-site. Made from recyclable plastic, Connolly Safety Cushion Caps are suitable for steel reinforcing bars N12–N32mm, as well as star pickets.
Sizes / Height in mm
Green, CSCC12-20 ( 50 in a bag )
Orange, CSCC20-32 & Star Picket ( 50 in a bag )
